Motorola MC75

Size: 7in L x 3.3in W x 1.7in D Weight: 14.9oz Display: TFL Color 3.5in, full VGA with backlight, 640 x 480 Expansion Slots: None Bluetooth: Yes

OS: Windows Mobile 6.5 Classic Windows Mobile 6.5 Professional Memory: 256MB RAM/1GB Flash Processor: PXA320 806MHz WiFi: 802.11a/b/g tri-mode radio Cellular: Yes

How Tos:

Warm Boot

• Hold down the Power button until the handheld begins to boot (about 5 seconds)


Cold Boot

Warning: Cold booting any device can erase data and the TrackAbout software. Contact TrackAbout Support before attempting a cold boot.

• Simultaneously press the 1,9 and Power keys


Save Wireless Configurations in the Applications Folder

Saving wireless configurations in the Applications folder will save the wireless settings even after a cold boot.

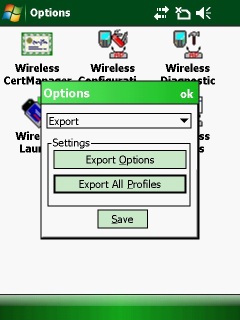

• Go to: Start > Programs > Wireless Companion > Wireless Launch > Options
• Select Export

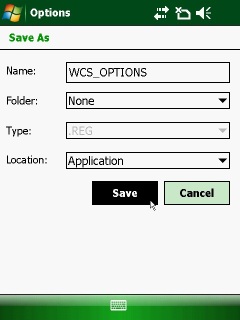

• Click Export Options
• Click Save

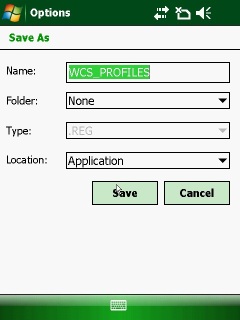

• Click Export All Profiles
• Click Save
• Click Ok

Known Issues

Wifi Not Connecting

Solution

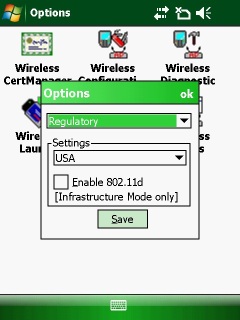

1. Go to Start > Programs > Wireless Companion > Wireless Launch > Options
2. In the top drop down box, choose Regulatory
3. In the Settings drop down box, choose USA
4. Uncheck the Enable 802.11d box
5. Click Save
6. Click Ok

Affects:

• OS Version: 05.02.20963
• OEM Name: Motorola MC75
• OEM Version: 02.35.0001
• Wireless Fusion Version: 30.10.0.0.304R

Explanation:

MC75 devices support a roaming protocol. If the access points did not also support the protocol, the device will not connect.

Scanner Not Beeping

Affects:

• Any MC75 running TAMobile 6

Solution

• No Solution Available

Environmental Specs:

Rain and Dust Resistance: IP54

Drop Specification:

• 4ft to concrete per MIL-STD 810G

• 1000 1.6ft tumbles per IEC 60068-2-32 specification


Electrostatic Discharge:

• +/- 15 kV air discharge
• +/- 8 kV direct discharge
